Description
- Communication method: Other
- Brand Name: XIAOMI
- Origin: Mainland China
hardware configuration
Product name: Xiaomi 10 Gigabit Router
Processor: Qualcomm quad core A73 2.2GHz
Memory: 2GB
2.4G Wi Fi: 4×4 (theoretical maximum speed can reach 1376.4Mbps)
5.2G Wi-Fi:4 × 4 (The theoretical maximum speed can reach 5764.8 Mbps)
5.8G Wi-Fi:4 × 4 (theoretical maximum speed can reach 2882.4Mbps)
Product antenna: external high gain antenna+NFC internal antenna
Product heat dissipation: active heat dissipation
Machine interface: 4×10/100/1000/2500M adaptive WAN/LAN interface 1×10/100/1000/2500/5000/10000M adaptive WAN/LAN interface 1×1000 м/
two thousand and five hundred м/ ten thousand м SFP+network port 1 × USB 3.0 interface
LED indicators: 9 (SYSTEM indicator x1, INTERNET indicator x1, Internet port indicator x6, atmosphere indicator × 1)
System reset button: 1
Power input interface: 1
Mesh button: 1
Executive standard: GB/T 9254.1-2021; GB 4943.1-2022
Wireless parameters
Tri band: 2.4GHz, 5.2GHz, 5.8GHz
Wireless channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,1213
5.2GHz Channel: 36,40,44,48,52,56,6064
5.8GHz Channel: 149153157161165

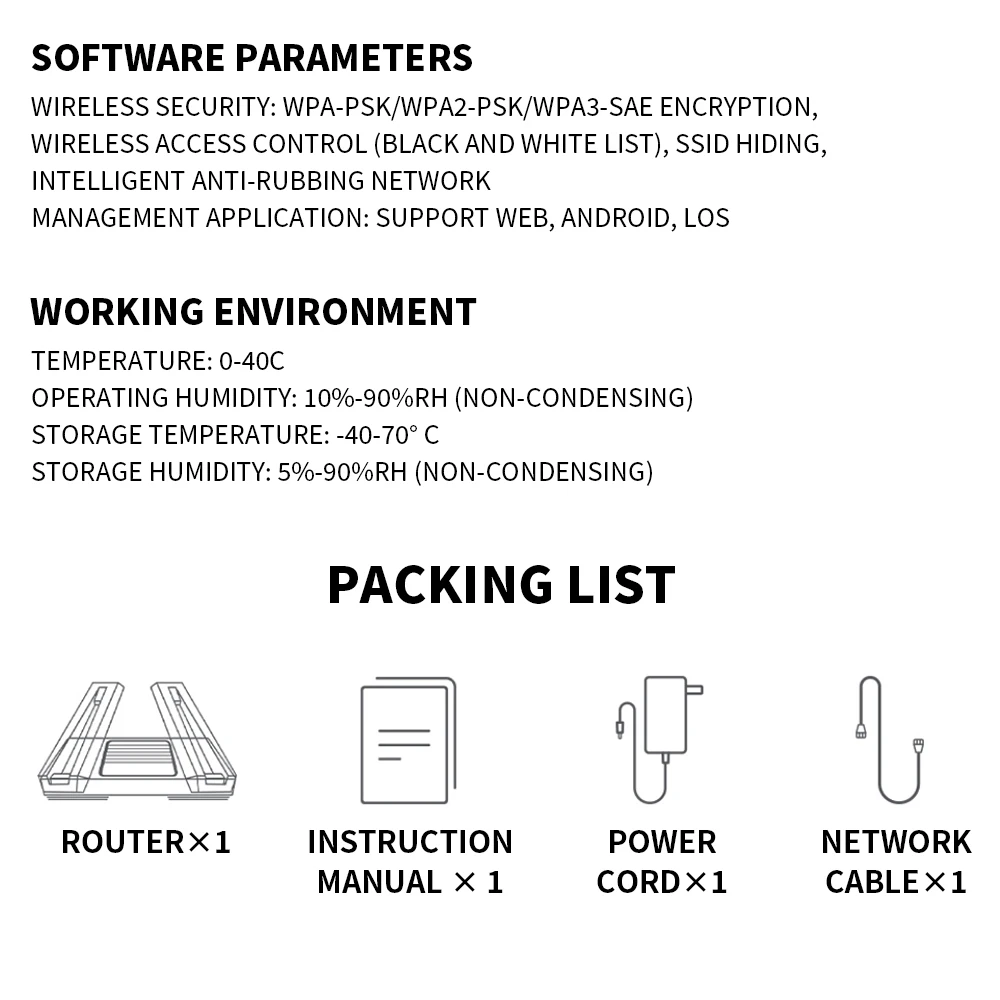

Software parameters
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SEA encryption, wireless access control (black and white list), SSID hiding, intelligent anti scratch network
Management application: support Web, Android, IOS
Product accessories
Manual (including three pack card): 1
Product power supply: 1 (12V/5A)
Network cable: 1
work environment
Working ambient temperature: 0-40 ℃
Operating humidity: 10% – 90% RH (non condensing)
Storage temperature: – 40-70 ℃
Storage humidity: 5% – 90% RH (non condensing)
Note: Please download the MiHome application, set the country and region to Chinese Mainland
